Everything You Need to Know About Rectangular Multi Pin Connector
When a robotics integrator in Nagoya added two sensors and a service disconnect to a compact actuator module, the team first counted pins and ordered a familiar housing. The prototype mated, but the cable exit collided with the enclosure and the pinout left no clear separation between power and low-level feedback. The setback came from treating a connector as a part number instead of an interface. A rectangular multi-contact system must be selected from the circuit map, geometry, retention, environment, and verification plan. Pin count matters, but it is only one input to a reliable design.
Summary: A rectangular multi pin connector is a keyed housing and contact arrangement that carries multiple power, signal, or data circuits through one serviceable interface. Select the number and type of contacts from the wiring schedule, then verify wire range, current and voltage, temperature, spacing, locking, sealing, and mating orientation. Board-to-board, wire-to-board, and cable-to-cable constructions solve different mechanical problems. Standards such as IEC 60529 address defined test scopes, not every product claim. Request drawings and evidence for the exact configuration before production approval.
For a related comparison, see Differences Between Circular and Rectangular Connectors USA.
What a rectangular multi pin connector does

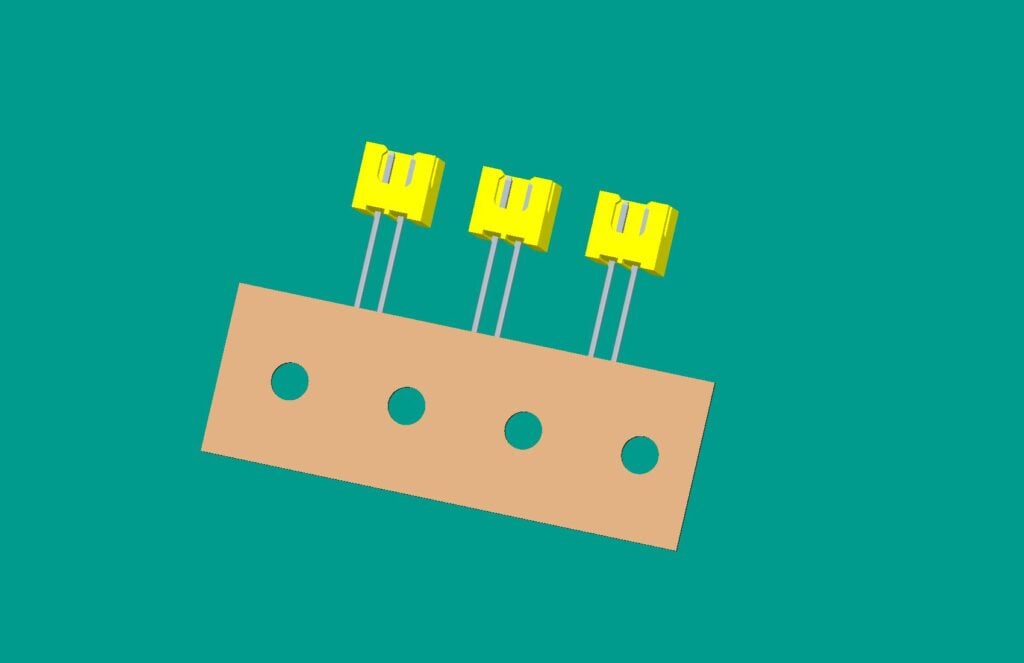

A rectangular multi pin connector brings several numbered contacts into a rectangular, keyed housing. Depending on the family, it may terminate wires, join a cable to a panel, connect a harness to a PCB, or provide a removable machine interface. The housing defines orientation and retention; the terminals define the electrical path. Do not infer compatibility from a similar outline or contact count.
Multi-contact designs can reduce separate plugs and make a module easier to remove, but they add pinout and identification work. Every cavity should have a controlled assignment, and any reserved cavity should be intentional and documented. A connector can carry power and signal together only when the contact system and layout support the application. Treat each rectangular multi pin connector as a defined assembly rather than a generic shell.
Types and their mechanical role
| Type |
Primary role |
Selection question |
| Board-to-board |
Joins two PCBs with a defined stack or orientation |
Does the pitch, stack height, and retention match the board design? |
| Wire-to-board |
Brings terminated conductors onto a PCB |
Do terminal, crimp, wire range, and board footprint match? |
| Cable-to-cable |
Creates a removable harness-to-harness connection |
Are the keys, strain relief, and service access controlled? |
| Sealed rectangular |
Protects a specified mated interface from defined exposure |
What exact assembly and installation earned the environmental rating? |
| Modular frame |
Combines approved inserts for equipment variants |
Which insert combinations and coding are released? |
Selection matrix by design dimension
| Dimension |
What to define |
Verification action |
| Pin count |
Power, return, signal, data, shield, and genuinely reserved conductors |
Freeze the pinout and cavity numbering in the drawing |
| Electrical load |
Current, voltage, temperature, duty, and derating |
Use the contact and wire ratings for the exact configuration |
| Mechanical fit |
Housing, pitch, keying, panel cut-out, bend radius, and access |
Check mating halves and a representative enclosure |
| Environment |
Moisture, dust, vibration, chemicals, UV, and temperature |
Match the tested configuration and installation method |
| Service |
Labels, release tools, inspection, and replacement parts |
Write a continuity, polarity, and retention check into the work instruction |
Features that deserve evidence
Locking and polarization prevent incorrect mating and accidental release, but the mechanism must be matched to vibration, cable pull, and maintenance access. Contact plating, conductor size, and crimp tooling affect electrical and mechanical performance; request the supplier’s instructions rather than assuming that a visual match is sufficient.
For outdoor or washdown equipment, confirm seals, backshells, cable diameter, and the state in which the rating was tested. IEC 60529 provides an ingress-protection test framework; an IP code is not a universal statement about every connector variant. For sensitive signals, review contact adjacency and routing, and perform the signal checks required by the equipment design.
Applications and procurement workflow
Automation, vehicle harnesses, instrumentation, appliances, communications, and medical equipment can all use rectangular multi-contact interfaces, but the application alone does not select the part. Send the supplier a drawing or wiring schedule, target market, operating environment, mating-cycle expectation, and required evidence. Compare complete assemblies, including contacts, seals, backshells, tooling, labels, and inspection time.
Before production, build a representative harness, verify every circuit, inspect retention, and record the configuration revision. See the rectangular connectors catalogue when preparing a sourcing shortlist, and keep alternatives tied to the same validated interface.
Standards and compliance scope
IEC standards may define connector tests, dimensions, or environmental classifications; UL requirements may apply to a component or end product; automotive, aerospace, medical, or machine programs can add sector-specific rules. ISO’s standards catalogue helps locate international documents but does not certify a product. Ask for the exact edition, test method, sample configuration, issuer, and scope of any certificate or report. This distinction matters when a buyer must substantiate a safety, ingress, or market-access claim.
Use authoritative entries such as the IEC Webstore, ISO Standards, and UL Resources to identify applicable requirements.
FAQs
How many pins should a rectangular multi pin connector have?
Count every required conductor, including power, return, signal, communication, shield, and any justified reserve. Then check contact ratings, spacing, wire size, and future service needs; the smallest numerical count is not always the best interface.
Can a rectangular multi pin connector carry both power and data?
Some families can combine separate power and signal contacts in one housing. Confirm the contact arrangement, ratings, routing guidance, and any signal-integrity requirements for the exact assembly.
Are rectangular multi-pin connectors suitable for vibration?
They can be when the housing, terminal retention, lock, strain relief, and installation have evidence for the expected vibration. Verify the test scope and inspect the assembled harness rather than relying on the shape.
What is the right way to maintain a multi-pin connector?
Follow the manufacturer’s mating and cleaning instructions, keep contacts dry and protected, and inspect seals, locks, terminals, and wire retention. Record any replacement and repeat continuity and polarity checks after service.
Conclusion
The decision principle is to select a complete, documented interface rather than a pin count in isolation. Start with the wiring schedule and mechanical drawing, assign every cavity, and verify contact, wire, locking, sealing, and temperature requirements for the intended market. Build and inspect a representative harness, freeze the pinout, and give production and service teams the same revision-controlled instructions. This process lets a rectangular multi pin connector simplify equipment without hiding new configuration risks. Once those requirements are clear, ZUCH’s product catalogue can help buyers compare rectangular connector families and request a drawing-led review for the application.
References: IEC Webstore (IEC standards and test methods); ISO Standards (international standards catalogue); UL Resources (North American safety guidance); CAN in Automation knowledge (industrial communication context).
