Zhejiang ZUCH Technology Co., Ltd.
Ring or Spade Terminals · Ring Terminal Series

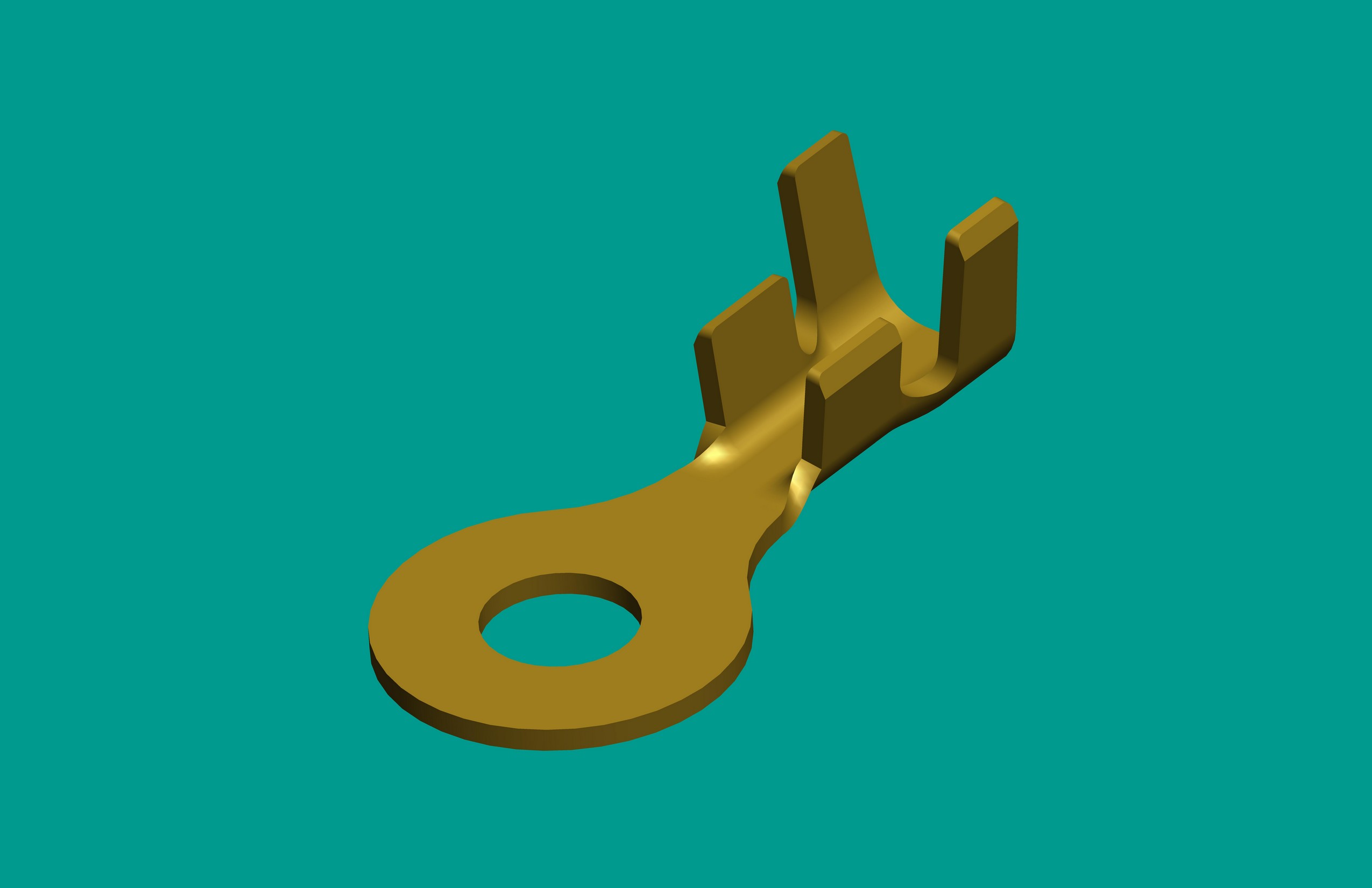

Engineering summary for TO32752K-0
TO32752K-0 is a ring terminal listed in ZUCH’s Ring Terminal Series. The published record identifies a 16-18AWG crimping range, M3 bolt size and Copper Alloy material. Confirm the drawing and conductor preparation before approving a harness or equipment BOM.
Application review
Where this terminal may be evaluated
ZUCH publishes solution areas for engineering review. They are not proof that TO32752K-0 is approved for a specific platform. Confirm current, wire, mating and validation requirements.
Supplier context
Engineering and manufacturing behind ZUCH
Company-level engineering, laboratory and manufacturing information can help buyers assess supplier capability. These supplier-reported statements do not replace product-specific qualification.
ZUCH states that it was founded in 1994 and operates as a group with 10 subsidiaries and three major production bases.
ZUCH reports more than 100 R&D staff, more than 150 authorized patents, a CNAS laboratory and a UL witness laboratory. Confirm scope and current validity.
ZUCH describes CCD online inspection and WMS/WCS logistics working with SAP, MES and SCADA systems.
Published product facts
TO32752K-0 specifications
Values below are transcribed from the current ZUCH product record. A slash or missing value is not treated as a specification.
| Product line | Ring or Spade Terminals |
|---|---|
| Series | Ring Terminal Series |
| Type | Ring |
| Manufacturing code | TO32752K-1001 |
| Crimping range | 16-18AWG |
| Bolt size | M3 |
| Material | Copper Alloy |
| Surface treatment | None-plated |
| Usage environment | -40°~105° |
Frequently asked questions
TO32752K-0 FAQ
What is TO32752K-0 and which terminal type is it?
TO32752K-0 is listed as a ring in ZUCH’s Ring Terminal Series under the Ring or Spade Terminals product line.
What ring terminal size or interface should I check?
The published record lists a M3 bolt interface and a 16-18AWG conductor range. Confirm the drawing, mating hardware and conductor preparation before selecting a terminal connector.
How do I crimp a ring terminal and choose the right crimp tool?
For TO32752K-0, use the current ZUCH drawing and approved tooling for the 16-18AWG range; the public record does not identify a universal tool code.
What material, plating and environment are published for TO32752K-0?
The record lists Copper Alloy with None-plated and a published usage environment of -40°~105°. Confirm current validation limits and project standards with ZUCH.
Can TO32752K-0 be used in an automotive wire harness?
Automotive terminal connectors are a search and application area, but this page does not establish vehicle-platform qualification for TO32752K-0. Confirm the applicable vehicle standard, current, mating system and validation plan.
What should I confirm before ordering this terminal connector?
Confirm model TO32752K-0, manufacturing code TO32752K-1001, wire range, bolt or interface size, mating hardware, surface treatment, environment, drawing revision, quantity and required documents.
Project enquiry
Request a model-specific quote
Send the exact model and project inputs so ZUCH can confirm unpublished specifications, document revisions and purchasing terms.
- Exact model and expected quantity
- Wire range, bolt interface and application
- Surface treatment and environment requirements
- Destination market and required documents
