How to Disconnect Automotive Electrical Connectors?

To disconnect an automotive electrical connector safely, switch off the vehicle, follow the vehicle service procedure, identify every primary and secondary lock, and release the lock before separating the housings in a straight line. Hold the connector body—never pull on the wires. If a terminal must be removed, use a depinning tool that matches the cavity and retention feature; a makeshift tool is appropriate only for a simple, low-risk connector when its lock is clearly understood.

Quick Answer: The Safe Way to Disconnect a Car Connector

Start by removing tension from the harness and documenting the connector orientation. Release a CPA, TPA, slide lock, or lever lock before pressing the primary tab. Support both housings and pull them apart on the mating axis. Stop if the housing flexes, the terminal moves with the wire, or the lock is not visible.

This guide covers:

• ordinary plug and wiring-harness disconnection;
• connectors with primary and secondary locks;
• terminal removal with a matched automotive connector depinning tool;
• the limited situations in which a non-metallic alternative may be used; and
• damage checks before the connector is returned to service.

The role of automotive electrical connectors in your cars is very important

So that you can fully understand how to disconnect your cars connectors, let’s first define what automotive connectors are. They are the small components that connect different electrical circuits throughout your car. It is through these connectors that you move the electricity and signals from one circuit to another (e.g., wiring to your headlight, wiring to various engine sensors, wiring to infotainment systems, etc). Separating the housing is only one step in automotive electrical connector repair; the contacts and locks must also be inspected.

The importance of connecting and disconnecting these connectors properly cannot be overstated. If the connector is not connected properly or you disconnect the connector from the electrical connector, it could disrupt the entire vehicle electrical system and cause the connected electrical component to malfunction or act erratically.

Safety Checks Before Disconnecting a Connector

• Control the power source. Switch off the ignition and follow the vehicle manufacturer’s service information before disconnecting a battery or opening a circuit.
• Escalate high-risk systems. Airbag circuits, high-voltage battery systems, pyrotechnic devices, and safety-critical ECUs require the specified isolation time, test method, personal protective equipment, and qualified service procedure. Do not improvise.
• Unload the harness. Remove clips or reposition the harness only as the service information permits so the connector is not being pulled sideways.
• Inspect before touching. Look for water, corrosion, heat discoloration, broken plastic, or a previously forced lock.
• Record orientation and wire order. Take a clear photo before disassembly, especially when more than one similar connector is nearby.

How to Identify the Connector Locking Mechanism

The release direction is determined by the connector design, not by the amount of force available. Inspect all sides and consult the connector drawing or vehicle service information when the lock is hidden. Depinning an automotive connector requires a separate check of the terminal-release direction.

Primary Locking Tab

A flexible tab or latch retains the two housings. Press or lift it only in its designed direction while supporting the housing. Dirt or side load can make an intact tab feel stuck.

Secondary Lock or CPA/TPA Lock

A connector-position-assurance (CPA) device, terminal-position-assurance (TPA) device, or other secondary lock may block the primary release or retain terminals after assembly. Move it only to its documented service position before operating the main latch. Do not pry it completely out unless the service instruction requires removal.

Slide Lock and Lever Lock

A slide lock travels across the housing; a lever lock converts lever movement into controlled mating or unmating travel. Forcing the housings apart before completing that travel can crack the guide features or distort the terminals.

Keying and Polarization

Keys and polarization ribs prevent an incorrect orientation. They are not release points. If the housings do not separate on the mating axis after the locks are released, stop and recheck the mechanism.

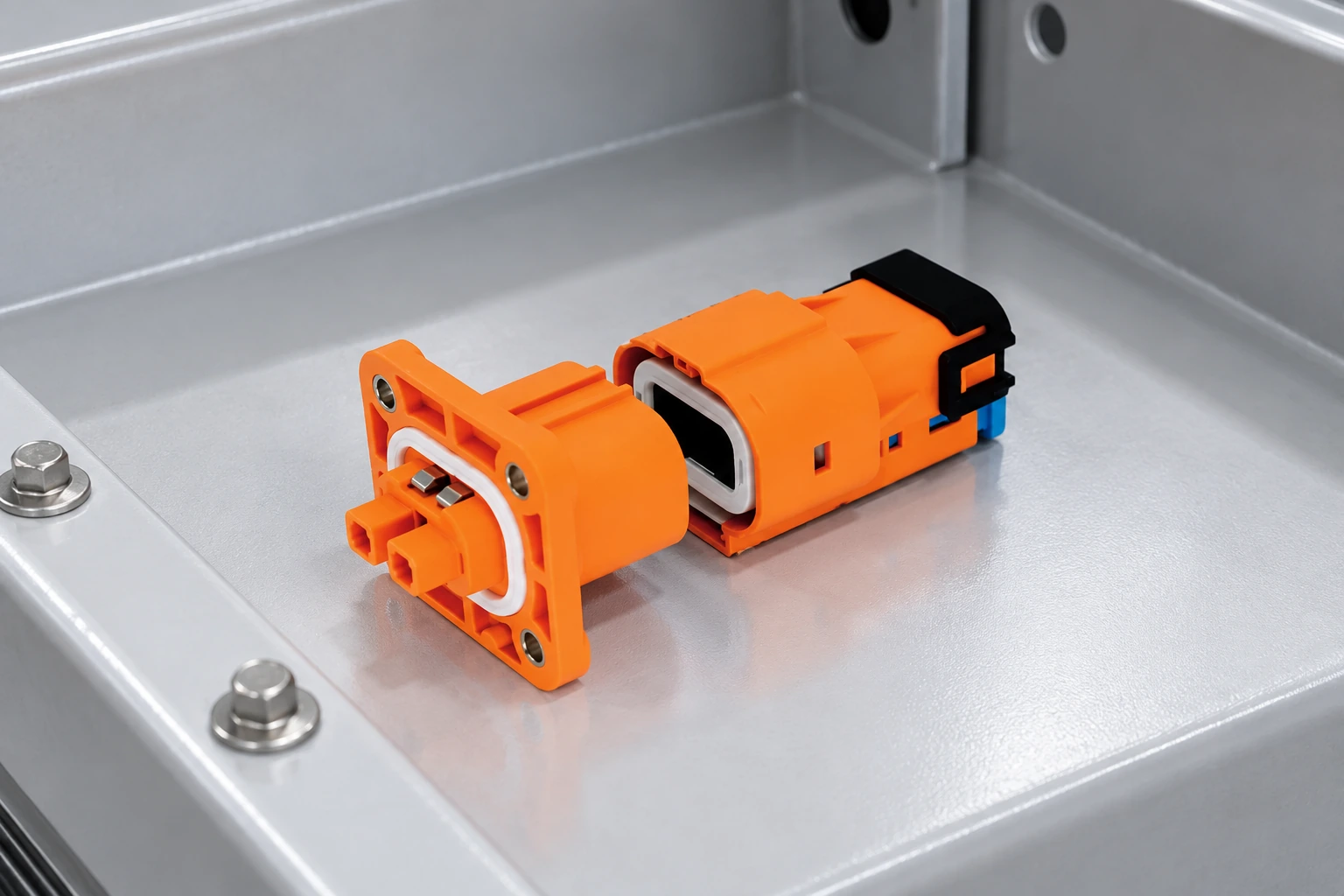

Disconnection Steps for Automotive Electric Connection

Disconnecting connector automotive electrical components may appear easy; however, it is necessary to follow a defined method before continuing, to prevent damage to the automotive electrical system. The following is a detailed instruction of how to disconnect connectors for automotive electrical components:

Step 1: Remove the Vehicle Battery from the Vehicle (Safety Precautions)

Switch off the ignition and follow the vehicle-specific service procedure. Disconnecting the 12 V battery may be required, but it is not a universal first step: the correct sequence depends on the vehicle, retained-power functions, and the circuit being serviced. High-voltage, airbag, and pyrotechnic circuits require their dedicated isolation and verification procedure.

Step 2: Identify the location of the automotive wire connector

Since connectors are usually not exposed to view and fit in a very cramped space, you may need some additional tools such as flashlights or inspection mirrors in order to see them accurately.

Step 3: Check the type of locking mechanism used on the connector

Understand how it will work when attempting to open the connector. The most common locking mechanisms for automotive connectors include push tab locks, sliding clip locks, and lever lock. Be aware of the style of locking mechanism used in order that you apply proper force to unlock it without damaging it.

Step 4: Release the Connector

Depending upon the lock type, either press down on the push tab, pull up on the lever or slide the clip towards the connection point, to unlock/ release the connector. If you are applying force to the connector but have trouble unlocking it, gently wiggle the connector back and forth while applying a small amount of pressure. You should be cautious in applying large amounts of force to the connector, as this may cause the plastic housing to crack or create damage to the internal terminals within the connector.

Step 5: Gently pull the connectors apart

Once the locking mechanism has been disengaged, pull the connectors apart gently, making sure to pull on the entire connector housing and not just on the wire connections, as pulling on the wire connections could result in disconnection or significantly damaging them.

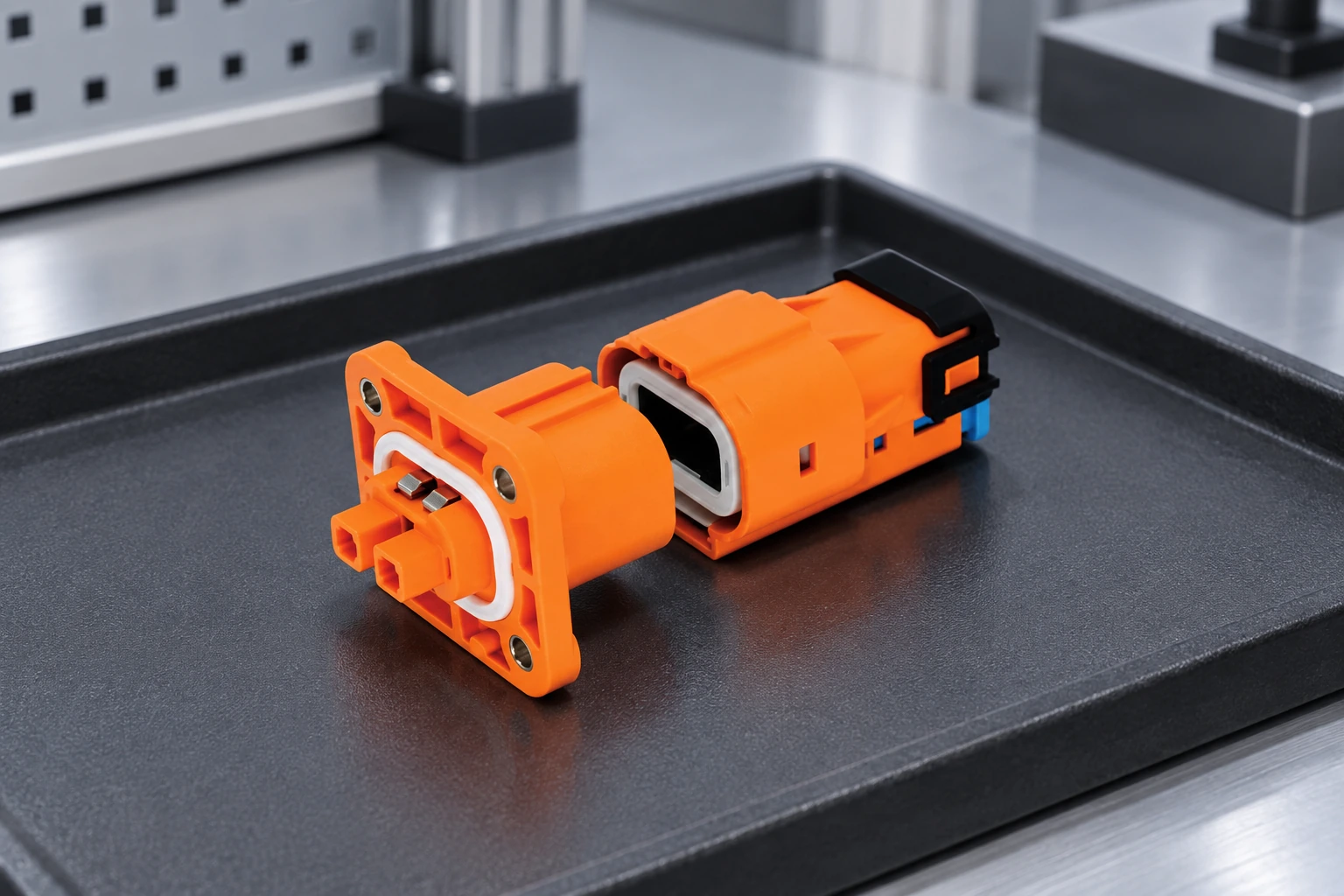

Step 6: Inspect the wire and terminal connection points

After separating the connectors check the wire and terminal connection points attached to each connector for signs of corrosion, damage or deterioration. Make sure that if you see any issues, you take care of or replace them before further electrical issues arise.

Which Method Fits the Connector?

What is a Quick Disconnect Tool?

When you’re removing automotive wire connectors from an automotive application, a specialized tool such as a quick disconnect tool will often help you separate them easily. Disconnecting connectors in difficult-to-reach places or in connectors with stubborn locking types will improve your ability to get the job done. Always look for the quick disconnect tool that matches the type and size of connector that you are trying to disconnect. Many quick disconnect tools are packaged in kits so they are handy to have in your toolbox.

Why You Would Need to Remove Wires from Connectors

There are many situations in which you may need to disconnect or remove wires from automotive electrical connectors:

1. Bad Connection Repair: With time, connectors can become worn, rusted or loose, causing them to perform poorly or fail altogether.

2. Upgrade Components: If you upgrade electrical components such as headlights, sensors or audio systems, you will need to disconnect the current connector to install the new one.

3. Troubleshoot Electrical Problems: To diagnose problems with an automobile’s electrical system, you will need to disconnect connectors to test individual circuits or components.

4. Regular Maintenance: If you need to perform periodic maintenance to replace lamps, relays, clean connectors, etc., the connectors must also be disconnected.

How to Remove Wires from Automotive Connectors

Removing a Terminal with a Depinning Tool

1. Identify the housing, terminal family, cavity, and retention direction from a drawing or reliable service reference.
2. Move the secondary lock to the service position.
3. Push the wire slightly toward the housing to unload the primary lance.
4. Insert the matched depinning tool along the documented path; keep it outside the terminal’s contact box.
5. When the lance is released, withdraw the wire and terminal on the cavity axis without twisting.
6. Inspect the lance, contact box, crimp, seal, and housing cavity before reuse.

For a deeper terminal-removal procedure, see how to remove a wire from a push-in automotive connector. If the terminal or wire position is changing, use the controlled workflow in the automotive connector re-pinning guide.

Removing a Wire Without a Specialized Tool

A connector housing may sometimes be separated by hand after its external latch is released; that is different from depinning a terminal. If a simple low-risk terminal design has a visible, accessible retention feature, a thin non-metallic shim may help release it. The shim must fit without spreading the cavity or touching the contact box. Stop if resistance increases or the housing whitens or flexes.

Do not use an improvised tool on high-voltage, airbag, sealed, safety-critical, or already damaged connectors. In those cases, obtain the specified tool or refer the work to a qualified technician. For repair decisions after removal, use the checks in the automotive electrical connector repair guide.

Suggestions for Working with Automotive Connectors

If you use the following suggestions while working with connectors, you should have a better experience:

Proper Use of Tools

When you disconnect and remove connectors, use the correct tools. The right tool allows for the quickest removal of connectors and prevents damage to connectors or wires. Connector release tools and terminal removal kits are specialized tools specifically designed for removing automotive connectors quickly and with minimal effort. By using the proper tools, the time spent removing connectors will be kept to a minimum and help to avoid damaging connectors and wires during removal.

Be Gentle with Connectors

When removing and handling connectors, be gentle. Connectors are made from plastic and can easily be damaged, just like the wires attached to them. Be careful not to use too much force when working with connectors. Using excessive force may result in damaging the plastic housing, wires, or both.

Document Connections

Before disconnecting connectors, take pictures or label all of the wires so you can reconnect everything correctly after removing the connectors, if applicable. Documenting the connections will help ensure you will be able to locate the wires once the connectors are reconnected.

Clean Connectors

If you notice dirt, grease, or corrosion on connectors, clean them gently using electrical contact cleaner. Maintaining clean connections is crucial to ensuring proper function of connectors.

Common Mistakes That Damage Automotive Connectors

• Pulling the wires: transfers force into the crimp and terminal retention system instead of the housing.
• Prying before unlocking: cracks the housing or latch and can distort the mating interface.
• Ignoring a secondary lock: makes a correctly retained terminal appear seized.
• Using a tool that is too thick or hard: spreads a cavity, flattens the retaining lance, or enters the contact box.
• Reusing a damaged terminal: a bent lance or deformed contact may not retain or mate consistently.
• Skipping the final lock check: a connector can look seated while a CPA, TPA, or terminal remains out of position.

When Should You Replace the Connector?

Replace the affected housing, terminal, seal, or pigtail rather than forcing reuse when inspection finds:

• a cracked, melted, or permanently deformed housing;
• a latch that cannot hold the connector in its fully mated position;
• corrosion, heat discoloration, relaxed spring features, or a visibly loose terminal;
• a broken conductor or insulation damage at the crimp;
• a torn, swollen, displaced, or missing environmental seal; or
• intermittent continuity after correct seating and circuit checks.

Replacement parts must match the mating interface, terminal, wire size, seal range, keying, and application requirements. A similar-looking connector is not automatically interchangeable. Candidate automotive connector products should be confirmed against a controlled drawing and the complete assembly specification.

Frequently Asked Questions

How do you remove electrical connectors on a car without a tool?

For a simple, low-risk plug, first identify and fully release the external latch, then hold both housings and separate them straight apart. A thin non-metallic shim may assist only when the retention feature is visible and its direction is known. Do not improvise on high-voltage, airbag, critical ECU, sealed, or damaged connectors.

How do you disconnect a wiring harness connector?

Remove harness tension, move any CPA or TPA secondary lock to its service position, release the primary latch, and pull on the housings along the mating axis. Never pull the wiring harness itself.

How do you remove a wire from a push-in automotive connector?

Identify the terminal and retention design, open the secondary lock, unload the primary lance by pushing the wire slightly inward, and insert a matched depinning tool from the correct face. Withdraw the terminal straight out and inspect its lance, contact box, crimp, seal, and cavity before reuse.

What should you do before disconnecting a car connector?

Switch off the vehicle, follow the service information for power isolation, check whether the circuit involves airbags or high voltage, remove tension from the harness, inspect for damage or moisture, and photograph the orientation and wire order.

How can you prevent damage when removing automotive connectors?

Identify every lock before applying force, use the specified tool and insertion path, support the housing, avoid pulling wires, and stop when the housing flexes or the terminal moves unexpectedly. After reconnection, verify that the housing, secondary lock, and terminals are fully seated.

Understanding how to remove automotive electrical connectors properly is an essential skill to have for everyone that repairs or maintains vehicles. Using the step-by-step guide and the right tools will ensure that the removal of connectors will go quickly and without causing damage. Whether you are upgrading vehicles with new components or you are troubleshooting a vehicle’s electrical issue, having a good understanding of how to remove electrical connectors will save you both time and money. When in doubt, consult your vehicle’s owners manual or a qualified technician to ensure that you are removing electrical connectors correctly.
