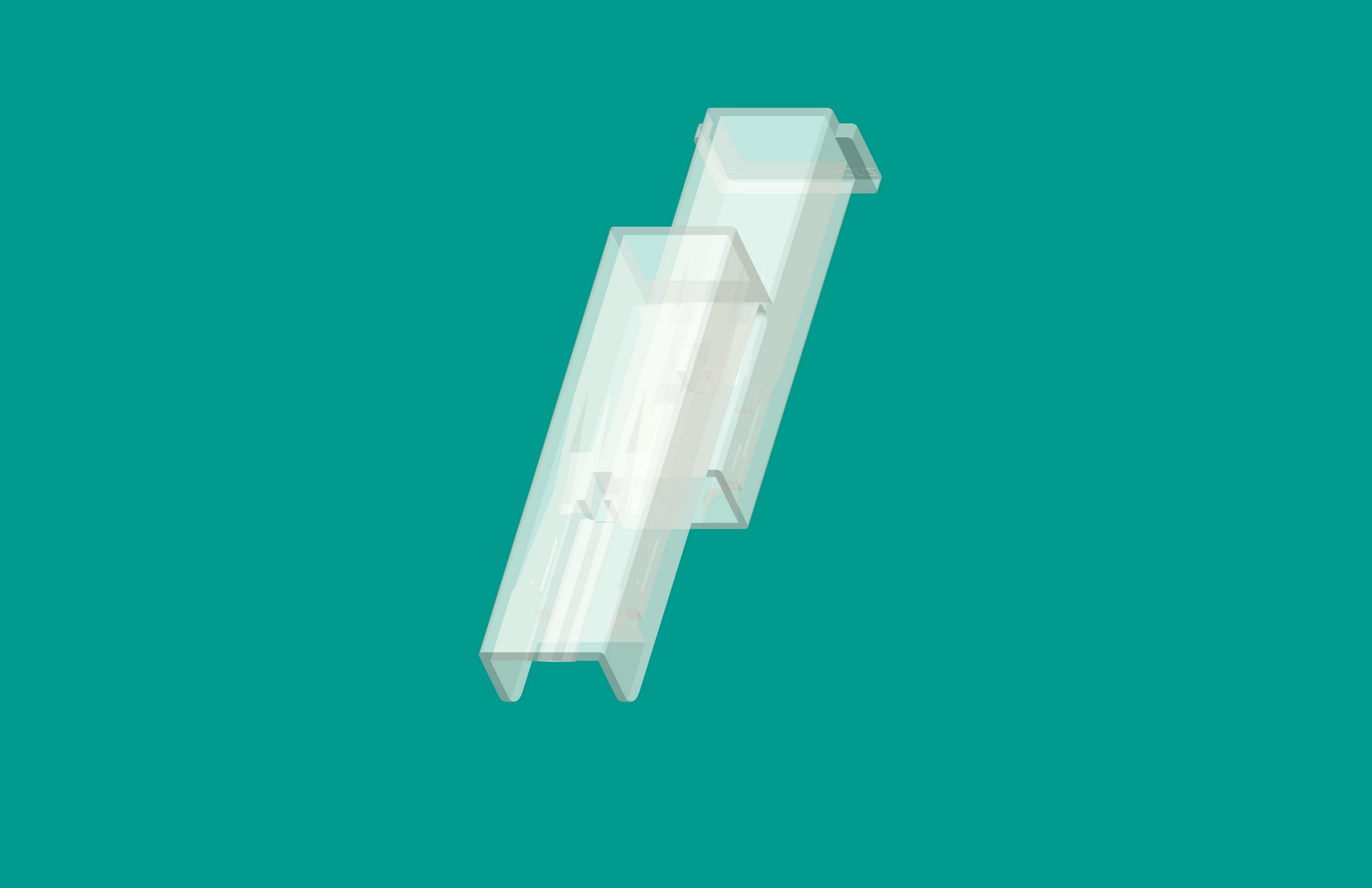

HP18733K-2Y/0101 2-Position Quick-Connector Housing Overview
HP18733K-2Y/0101 is a quick-connector housing in ZUCH’s 187 Positive Lock Series. Key selection details include digits: 2; material: PA66 GWT.
For connector selection, review the cavity arrangement, mating part and contact specification together.
2-Position Quick-Connector Housing Mating and Contact Selection
-
Mating interface
Confirm the mating housing, contact cavity and keying against the exact series drawing. Equal pitch alone does not establish interchangeability.
-
Contact and assembly
Confirm the approved contact part number, conductor range and retention features. A housing is not a complete terminated connector assembly.
-
Electrical conditions
Review the housing voltage field separately from the contact current requirement. Confirm the assembled system rating and installation environment.
Model and color identification
The catalog color for HP18733K-2Y/0101 is natural. Confirm the complete manufacturing code when selecting a color or version; matching color alone does not identify a mating component.
ZUCH Engineering Support for Quick-Connector Housing Projects
ZUCH describes its R&D, laboratory and digital-manufacturing capabilities on its company pages. For this product, request the relevant drawing review and quality documents from the sales or engineering team.
Quick-Connector Housing Selection Guide and Sample Requests
PA66 GWT Quick-Connector Housing Selection and Assembly FAQ
What is the HP18733K-2Y/0101 connector housing, and are contacts included?
ZUCH lists HP18733K-2Y/0101 as a quick-connector housing in its 187 Positive Lock Series. A housing designation alone does not establish the supplied contents. Confirm whether the quotation includes contacts, the mating component and any assembly accessories, or the housing only.
How do I check position count and mating dimensions for HP18733K-2Y/0101?
The catalog lists 2 positions for HP18733K-2Y/0101, but does not publish contact pitch or row layout. Use its current drawing to confirm cavity spacing, terminal fit and mating dimensions. Do not treat the 187 Positive Lock Series label as a published pitch measurement.
Is HP18733K-2Y/0101 a male or female connector housing?
The catalog identifies HP18733K-2Y/0101 as a quick-connector housing; this does not by itself specify whether its approved contacts are pins or sockets. Housing form and contact gender are separate selection details. Confirm the contact interface and mating-part drawing with ZUCH before ordering.
Can HP18733K-2Y/0101 mate with a similar housing of the same color?
The listed housing color is natural. Color and a similar appearance do not prove mating compatibility. Compare the cavity pattern, contact interface, polarization, keying and latch geometry on the two drawings, then ask ZUCH to confirm the approved mating part for HP18733K-2Y/0101.
What does the PA66 GWT material designation mean for HP18733K-2Y/0101?
The published material designation for HP18733K-2Y/0101 is PA66 GWT. This record does not state a test standard, test temperature, report number or flammability classification. Confirm the exact resin grade and applicable material or glow-wire test documentation with ZUCH; do not treat the designation alone as a verified test result.
What IP rating does HP18733K-2Y/0101 have, and can it be used outdoors?
No IP rating or outdoor-use approval is published in the target record for HP18733K-2Y/0101. Its material and usage-environment field do not establish a sealed connection. Confirm the tested protection rating, mating condition and any required seals for the complete assembly before specifying wet, dusty or outdoor service.
Does the voltage rating of HP18733K-2Y/0101 determine its current capacity?
The published rated voltage is 250V; this is not a current rating. The target record does not state a current limit. Ask ZUCH to confirm the allowable current with the approved contacts, wire size, circuit loading and ambient conditions, rather than calculating an amperage from the voltage field.
How should contacts be installed and checked in HP18733K-2Y/0101?
Confirm the approved terminal, wire range, crimp tooling and insertion orientation before assembly. Request the insertion and retention checks for HP18733K-2Y/0101, and verify that each contact is fully seated before mating. Do not force a contact or assume that a secondary lock is included. The series name alone does not establish the exact locking or release procedure.
Need help with your project?
Share the model, drawings and application requirements with the ZUCH team.
Request a Quote for HP18733K-2Y/0101 Quick-Connector Housing
For HP18733K-2Y/0101, send the intended application, quantity, mating or assembly drawing and conductor requirements. Confirm sample availability, minimum order, lead time and packaging with ZUCH.
