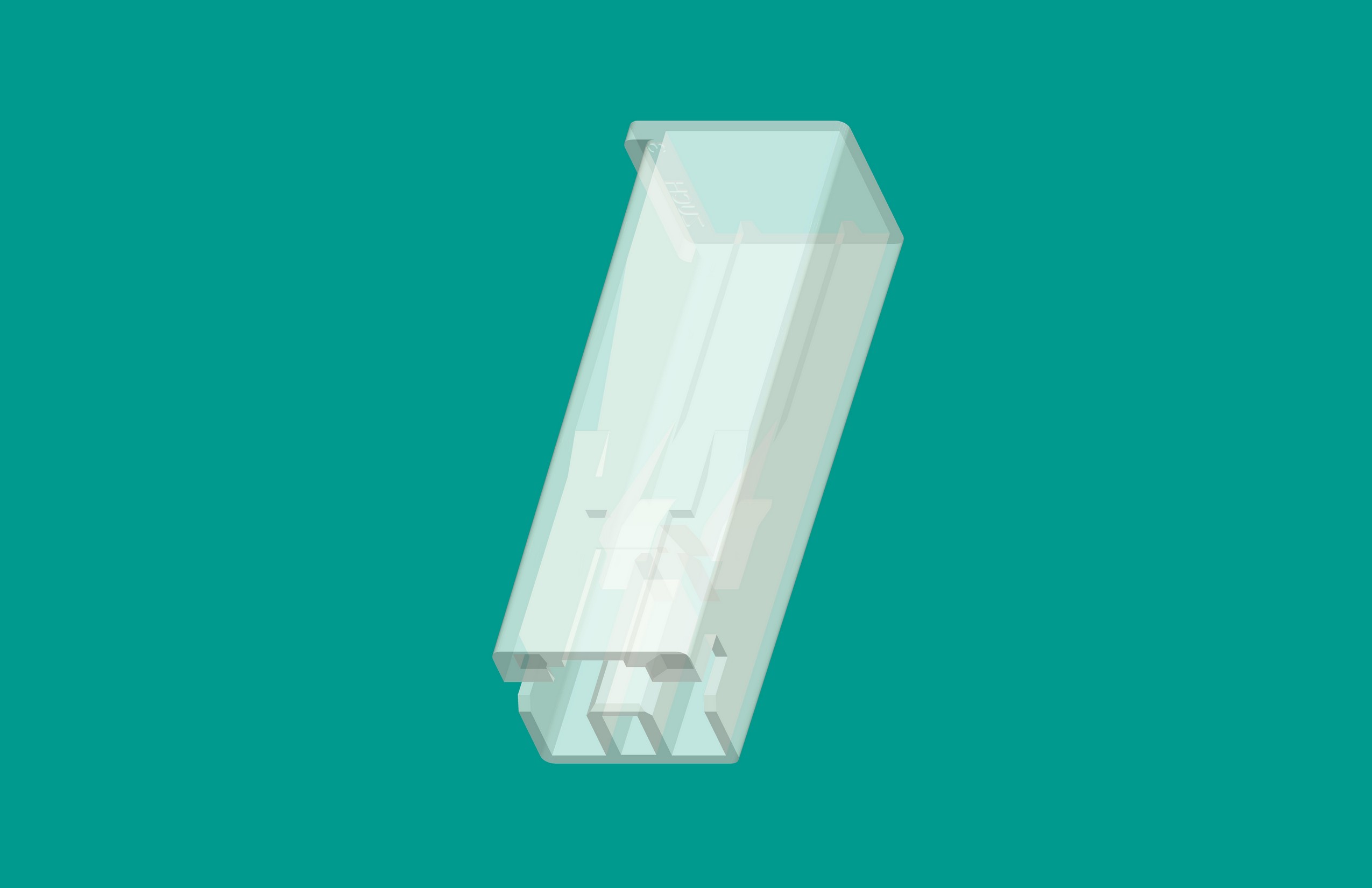

HP25031A-1Y/1001 1-Position Quick-Connector Housing Overview
HP25031A-1Y/1001 is a quick-connector housing in ZUCH’s 250 Positive Lock Series. Key selection details include digits: 1; material: PA66.
For connector selection, review the cavity arrangement, mating part and contact specification together.
1-Position Quick-Connector Housing Mating and Contact Selection
-
Mating interface
Confirm the mating housing, contact cavity and keying against the exact series drawing. Equal pitch alone does not establish interchangeability.
-
Contact and assembly
Confirm the approved contact part number, conductor range and retention features. A housing is not a complete terminated connector assembly.
-
Electrical conditions
Review the housing voltage field separately from the contact current requirement. Confirm the assembled system rating and installation environment.
Model and color identification
The catalog color for HP25031A-1Y/1001 is white. Confirm the complete manufacturing code when selecting a color or version; matching color alone does not identify a mating component.
ZUCH Engineering Support for Quick-Connector Housing Projects
ZUCH describes its R&D, laboratory and digital-manufacturing capabilities on its company pages. For this product, request the relevant drawing review and quality documents from the sales or engineering team.
Quick-Connector Housing Selection Guide and Sample Requests
PA66 Quick-Connector Housing Selection and Assembly FAQ
What is the HP25031A-1Y/1001 connector housing, and are contacts included?
ZUCH lists HP25031A-1Y/1001 as a quick-connector housing in its 250 Positive Lock Series. A housing designation alone does not establish the supplied contents. Confirm whether the quotation includes contacts, the mating component and any assembly accessories, or the housing only.
How do I check position count and mating dimensions for HP25031A-1Y/1001?
The catalog lists 1 position for HP25031A-1Y/1001, but does not publish contact pitch or row layout. Use its current drawing to confirm cavity spacing, terminal fit and mating dimensions. Do not treat the 250 Positive Lock Series label as a published pitch measurement.
Is HP25031A-1Y/1001 a male or female connector housing?
The catalog identifies HP25031A-1Y/1001 as a quick-connector housing; this does not by itself specify whether its approved contacts are pins or sockets. Housing form and contact gender are separate selection details. Confirm the contact interface and mating-part drawing with ZUCH before ordering.
Can HP25031A-1Y/1001 mate with a similar housing of the same color?
The listed housing color is white. Color and a similar appearance do not prove mating compatibility. Compare the cavity pattern, contact interface, polarization, keying and latch geometry on the two drawings, then ask ZUCH to confirm the approved mating part for HP25031A-1Y/1001.
What should I confirm about the PA66 housing material used in HP25031A-1Y/1001?
The material published for HP25031A-1Y/1001 is PA66. The exact resin grade, reinforcement and flammability classification are not given in this record. Confirm those requirements and any relevant material documentation with ZUCH; the PA66 label alone does not establish them.
What IP rating does HP25031A-1Y/1001 have, and can it be used outdoors?
No IP rating or outdoor-use approval is published in the target record for HP25031A-1Y/1001. Its material and usage-environment field do not establish a sealed connection. Confirm the tested protection rating, mating condition and any required seals for the complete assembly before specifying wet, dusty or outdoor service.
Does the voltage rating of HP25031A-1Y/1001 determine its current capacity?
The published rated voltage is 250V; this is not a current rating. The target record does not state a current limit. Ask ZUCH to confirm the allowable current with the approved contacts, wire size, circuit loading and ambient conditions, rather than calculating an amperage from the voltage field.
How should contacts be installed and checked in HP25031A-1Y/1001?
Confirm the approved terminal, wire range, crimp tooling and insertion orientation before assembly. Request the insertion and retention checks for HP25031A-1Y/1001, and verify that each contact is fully seated before mating. Do not force a contact or assume that a secondary lock is included. The series name alone does not establish the exact locking or release procedure.
Need help with your project?
Share the model, drawings and application requirements with the ZUCH team.
Request a Quote for HP25031A-1Y/1001 Quick-Connector Housing
For HP25031A-1Y/1001, send the intended application, quantity, mating or assembly drawing and conductor requirements. Confirm sample availability, minimum order, lead time and packaging with ZUCH.
