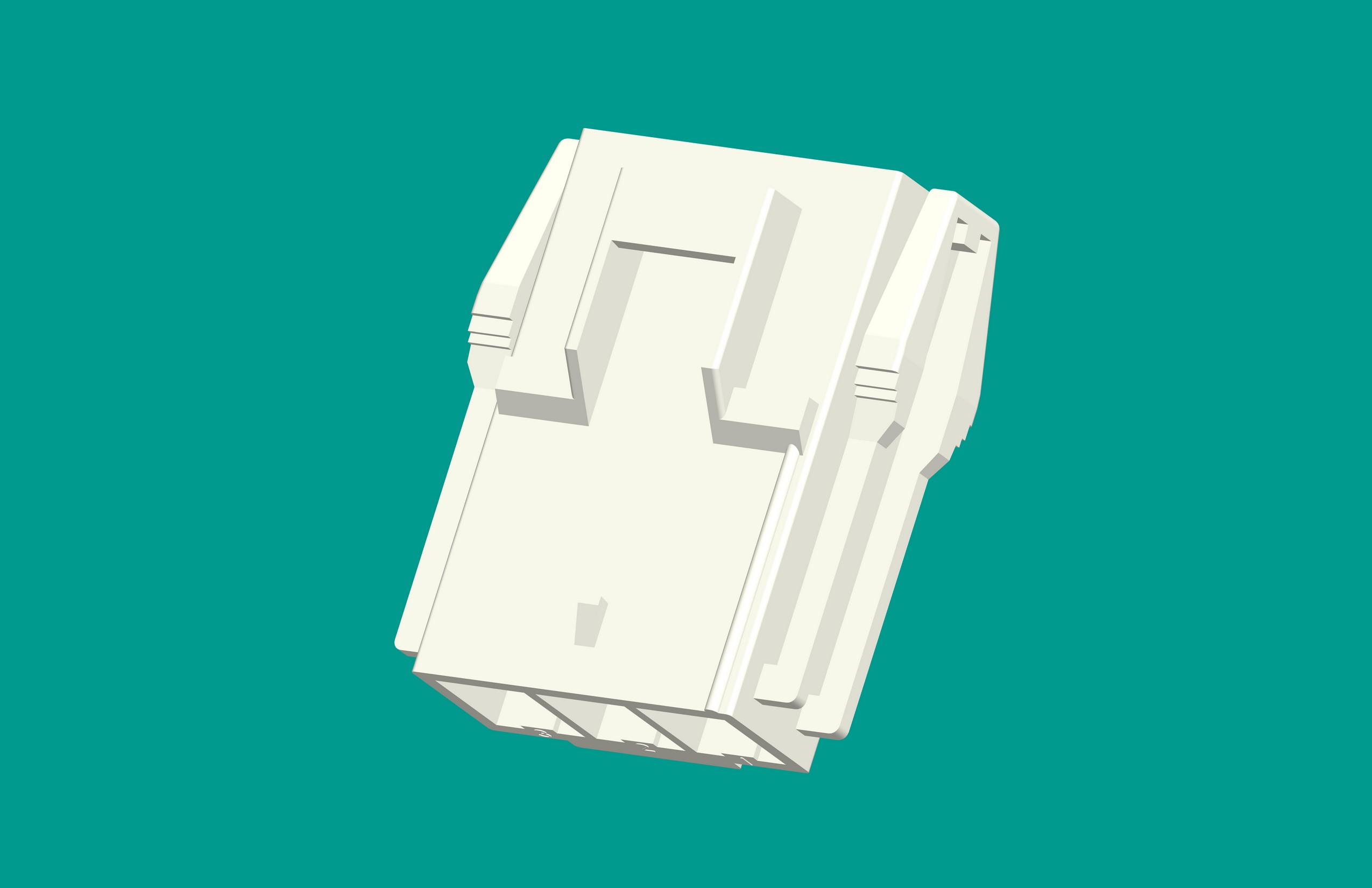

HR6204J-3YR/0201 6.20mm 3-Position Socket Housing Connector Overview
HR6204J-3YR/0201 is a socket housing connector in ZUCH’s J. Key selection details include spacing: 6.20mm; digits: 3; material: PA66 GWT.
For connector selection, review the cavity arrangement, mating part and contact specification together.
6.20mm 3-Position Socket Housing Connector Mating and Contact Selection
-
Mating interface
Confirm the mating housing, contact cavity and keying against the exact series drawing. Equal pitch alone does not establish interchangeability.
-
Contact and assembly
Confirm the approved contact part number, conductor range and retention features. A housing is not a complete terminated connector assembly.
-
Electrical conditions
Review the housing voltage field separately from the contact current requirement. Confirm the assembled system rating and installation environment.
Model and color identification
The catalog color for HR6204J-3YR/0201 is red. Confirm the complete manufacturing code when selecting a color or version; matching color alone does not identify a mating component.
ZUCH Engineering Support for Socket Housing Connector Projects
ZUCH describes its R&D, laboratory and digital-manufacturing capabilities on its company pages. For this product, request the relevant drawing review and quality documents from the sales or engineering team.
Socket Housing Connector Selection Guide and Sample Requests
PA66 GWT Socket Housing Connector Selection and Assembly FAQ
What is the HR6204J-3YR/0201 connector housing, and are contacts included?
ZUCH lists HR6204J-3YR/0201 as a socket housing in its J. A housing designation alone does not establish the supplied contents. Confirm whether the quotation includes contacts, the mating component and any assembly accessories, or the housing only.
How do I check the connector pitch and position layout of HR6204J-3YR/0201?
The published spacing is 6.20mm, with 3 positions in 1 row. Check center-to-center contact spacing against the drawing, rather than measuring the outside of the housing. Confirm cavity numbering and orientation before selecting the counterpart.
Is HR6204J-3YR/0201 a male or female connector housing?
The catalog identifies HR6204J-3YR/0201 as a socket housing; this does not by itself specify whether its approved contacts are pins or sockets. Housing form and contact gender are separate selection details. Confirm the contact interface and mating-part drawing with ZUCH before ordering.
Can HR6204J-3YR/0201 mate with a similar housing of the same color?
The listed housing color is red. Color and a similar appearance do not prove mating compatibility. Compare the cavity pattern, contact interface, polarization, keying and latch geometry on the two drawings, then ask ZUCH to confirm the approved mating part for HR6204J-3YR/0201.
What does the PA66 GWT material designation mean for HR6204J-3YR/0201?
The published material designation for HR6204J-3YR/0201 is PA66 GWT. This record does not state a test standard, test temperature, report number or flammability classification. Confirm the exact resin grade and applicable material or glow-wire test documentation with ZUCH; do not treat the designation alone as a verified test result.
What IP rating does HR6204J-3YR/0201 have, and can it be used outdoors?
No IP rating or outdoor-use approval is published in the target record for HR6204J-3YR/0201. Its material and usage-environment field do not establish a sealed connection. Confirm the tested protection rating, mating condition and any required seals for the complete assembly before specifying wet, dusty or outdoor service.
Does the voltage rating of HR6204J-3YR/0201 determine its current capacity?
The published rated voltage is 600V; this is not a current rating. The target record does not state a current limit. Ask ZUCH to confirm the allowable current with the approved contacts, wire size, circuit loading and ambient conditions, rather than calculating an amperage from the voltage field.
How should contacts be installed and checked in HR6204J-3YR/0201?
Confirm the approved terminal, wire range, crimp tooling and insertion orientation before assembly. Request the insertion and retention checks for HR6204J-3YR/0201, and verify that each contact is fully seated before mating. Do not force a contact or assume that a secondary lock is included.
Need help with your project?
Share the model, drawings and application requirements with the ZUCH team.
Request a Quote for HR6204J-3YR/0201 Socket Housing Connector
For HR6204J-3YR/0201, send the intended application, quantity, mating or assembly drawing and conductor requirements. Confirm sample availability, minimum order, lead time and packaging with ZUCH.
