Zhejiang ZUCH Technology Co., Ltd.
Connecting Terminals

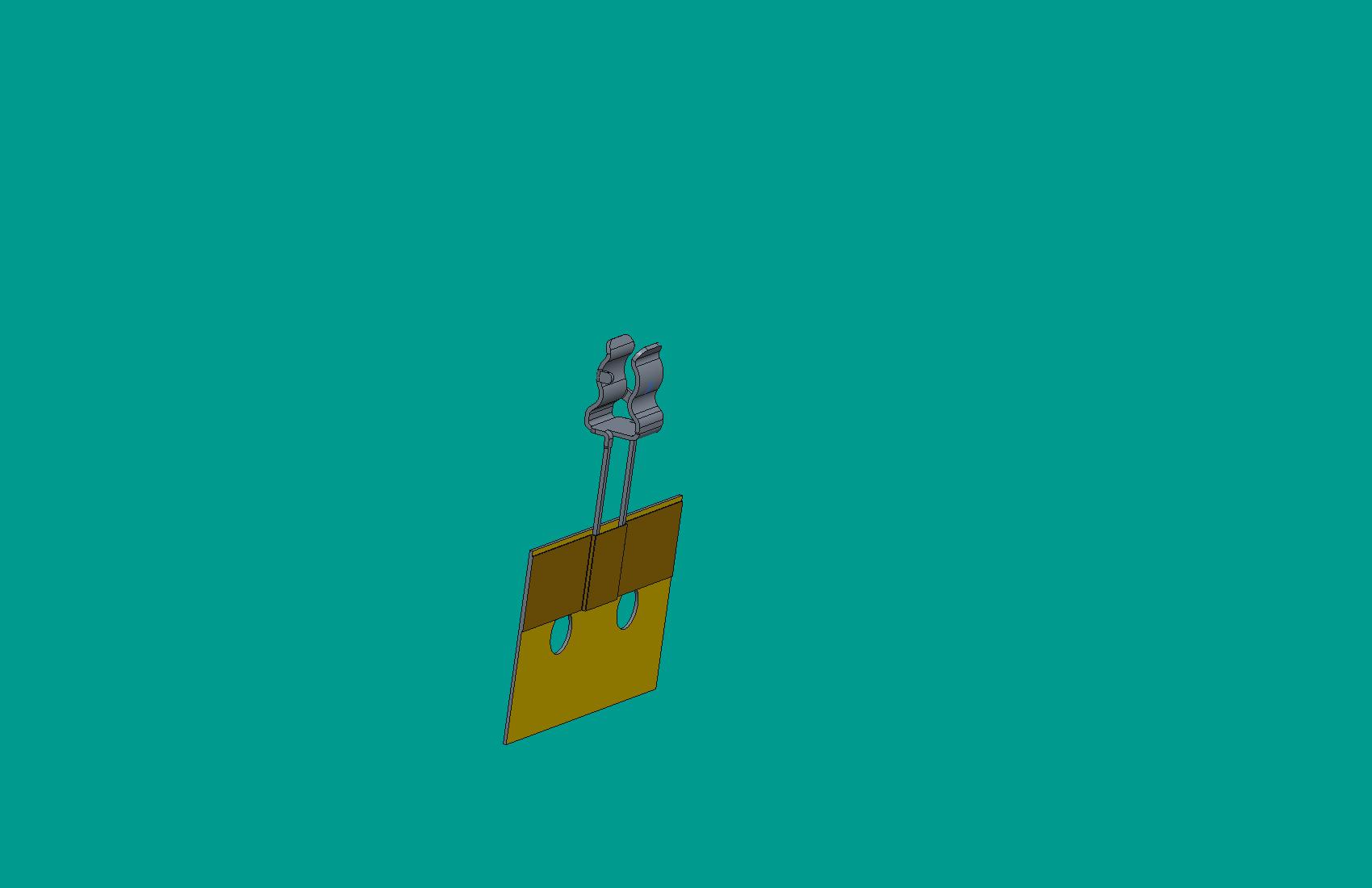

TM0003A-17 Welding Terminal Overview
TM0003A-17 is a welding terminal in ZUCH’s Fuse Terminal Series. Key selection details include material: Copper Alloy; surface treatment: High Temp.Bright Tin-plated.
For fuse-holder selection, review contact geometry, conductor termination and assembled circuit requirements together.
Welding Terminal Interface and Assembly Selection
-
Fuse interface
Confirm the terminal contact geometry, fuse dimensions and holder arrangement against the assembly drawing.
-
Conductor and tooling
Confirm the conductor specification and tooling for this terminal before assembly.
-
Circuit conditions
Confirm the assembled connection rating separately from the circuit protection specification. The fuse rating must not be treated as the terminal current rating.
ZUCH Engineering and Manufacturing for Welding Terminal Projects
ZUCH describes its R&D, laboratory and digital-manufacturing capabilities on its company pages. For this product, request the relevant drawing review and quality documents from the sales or engineering team.
TM0003A-17 Drawings and Welding Terminal Selection Resources
Welding Terminal Selection and Assembly FAQ
Which fuse fits TM0003A-17?
The catalog places this model in the Fuse Terminal Series. Confirm the fuse dimensions, holder design and mating contact geometry on the assembly drawing.
Is the terminal current rating the same as the fuse rating?
No terminal current rating is established by the fuse-series name. Confirm the current capacity of the assembled terminal and conductor separately from the fuse rating.
What wire range is listed for this terminal?
The conductor range is not published. Request the approved wire and tooling specification from ZUCH.
Are compliance documents available for my application?
Request the current model-specific material declaration and applicable compliance files. Company certifications and catalog family labels do not establish approval for a vehicle, appliance or other finished product.
Need help with your project?
Share the model, drawings and application requirements with the ZUCH team.
Request a Quote for TM0003A-17 Welding Terminal
For TM0003A-17, send the intended application, quantity, mating or assembly drawing and conductor requirements. Confirm sample availability, minimum order, lead time and packaging with ZUCH.
