There are many components that comprise the backbone of an automotive electrical system, but one that is often overlooked is the automotive relay connector. Automotive relay connectors are essential to provide a secure and efficient connection between the automotive relay and its corresponding automotive wiring system. This article will provide relevant information about the types, significance, and application of automotive relay connectors so that you may fully appreciate the importance of automotive relay connectors in our modern vehicle systems.

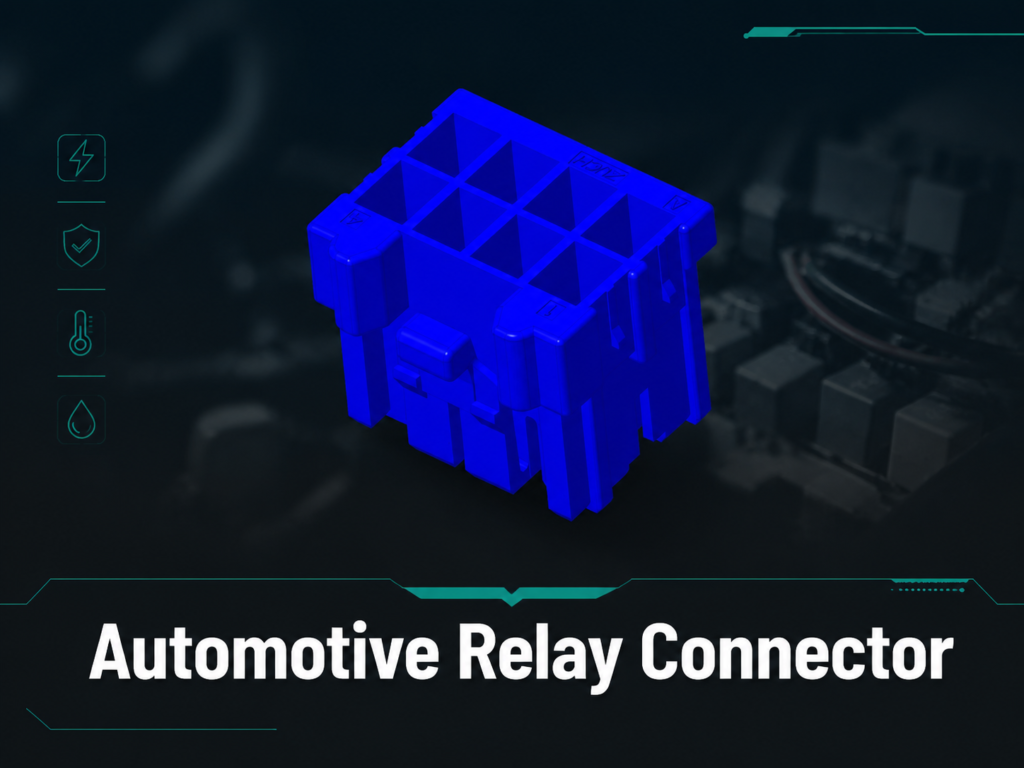

What is an Automotive Relay Connector?

An automotive relay connector is a specialized device that provides a secure mechanical mounting for the relay and connects the relay to the electrical circuit. An automotive relay connector, therefore, is critical in providing a reliable source of electrical energy for various automotive systems, such as headlights, fuel pumps, and cooling fans. If an automotive relay connector is of poor quality, a poor electrical connection may occur, which could cause a failure of the system, resulting in less performance and in some cases, unsafe conditions.

Types of Automotive Relay Connectors

However, there are differences between the various types of automotive relay connectors. A professional automotive technician should understand the different types of automotive relay connectors to ensure they select the correct type for the application. The following paragraphs will cover the primary types of automotive relay connectors:

1. Single Relay Connectors

Single relay connectors employ a single relay and are suitable for applications requiring only a single circuit and a limited number of components. For example, single relays are commonly used as stand-alone devices for fog lamps or other auxiliary electrical items.

2. Multi-Relay Blocks

Multi-relay blocks are used to connect multiple relay devices in a single enclosure, thus eliminating the need for multiple individual relay connectors. This arrangement simplifies the wiring installation and provides an organized manner to connect multiple relay circuits without the use of a multitude of individual relay connectors. These connectors are ideal for connecting up multiple interrelated relays, such as engine control units or advanced lighting systems.

3. Relay Terminal Connectors

Relay terminal connectors permit more individual terminal connections, making for flexible, customizable wiring methods.

4. Waterproof Relay Connectors

If the application exposes the connectors to moisture or water, such as on off-road vehicles, waterproof connectors provide long-term reliability and protection against short circuits and rust or corrosion, as well as electronic system failures. These sealed connectors protect the electrical components from the surrounding environments.

What Should You Be Aware of When Selecting Relay Connectors?

There are many factors to assess when choosing relay connectors:

1. Material quality: Durable materials such as nylon or ABS plastic ensure that the connector can survive high temperatures and mechanical abuse.
2. Connector type: Make sure the connector is compatible with your vehicle’s particular relays and electrical system requirements.
3. Ease of installation: Choose connectors that are simple to install, compactly designed, and will work efficiently with the vehicle wiring layout.
4. Weather resistance: When using connectors outdoors, look for waterproof connectors or connectors with high IP ratings.
5. Voltage/Current Ratings: Ensure that your connector will be able to handle the current load safely, especially for high-current use.

Installing Your Automotive Relay Connector

Installing your automotive relay connector may appear to be an overwhelming task, but following the right procedures and using the proper tools will make the process straightforward:

1. Identify the relay type and confirm compatibility with your vehicle’s electrical system.
2. Secure the relay connector in place within the relay box or the desired location.
3. Refer to the wiring diagram and properly connect the wires to the marked terminals (e.g., 85, 86, 87, and 30).
4. Test your installation to ensure that the relay works properly.

Relay Connectors Used in Automotive Applications

Relay connectors are crucial to several different vehicle subsystems, including but not limited to:

• Lighting Systems: Providing a consistent electrical current to headlights, brake lights, and fog lamps.
• Cooling Fans: Allowing the smooth operation of cooling fans for an engine.
• Fuel Pumps: Eliminating the possibility of intermittent relay failures while connecting the wires to the relays.
• Security Systems: Aiding in the operation of alarms or immobilizer systems, connecting them to the vehicle’s electrical system.

Common Relay Connector Questions

Q1: What are the types of automotive relay connectors?

A: Various types of relay connectors are available, including single relay connectors, multi-relay blocks, relay terminal connectors, and waterproof relay connectors. Each is suited for its specific type of application within automobile systems.

Q2: How do you choose the right relay connector?

A: When selecting a relay connector, you must consider factors such as compatibility, material quality, ease of installation, weather resistance, and voltage/current ratings.

Q3: Are waterproof relay connectors necessary in some vehicles?

A: Yes, especially if the vehicle will be exposed to a lot of moisture or water. Waterproof connectors are essential to prevent corrosion and short circuits in the vehicle’s electrical system.

Relay connectors are the unsung heroes within an automobile’s electrical system, providing reliability and ensuring proper functioning of critical vehicle subsystems. By ensuring that you purchase quality products based on your individual needs, you will enhance your vehicle’s operation, prolong its service life, and prevent premature failures. Whether you are an auto mechanic or an automotive enthusiast, investing in high-quality relay connectors will save you time, improve safety, and extend the lifespan of your vehicle.
