Guide to High Current DC Connectors for Modern Applications

With the increased focus on creating more efficient energy utilization, the need for high current DC power connectors has seen a significant boost in requirements as well; from companies building renewable energy products to those manufacturing large-scale industrial machinery; it has become critical that all hardware used today utilize connections capable of handling very large amounts of current with minimal losses due to heating and resistance, with maximum liability. This document will highlight the key aspects of high current DC connectors, what types are available in the market, where they are used, and how to select effectively when making an appropriate choice depending on your application.

For a related technical topic, see D-Shaped Connector Market.

Understanding High Current DC Connectors

A high current DC connector is a specialized connector that is intended to safely and efficiently deliver significant amounts of direct current (DC) through a cable from one point (source) to another point (load). While typical connectors may be adequate for lower amperages, they must be engineered differently to accomplish all of the goals defined for high current connector applications, hence, they will continue to maintain integrity regardless of how much resistance or thermal build-up occurs (this is the basic reason why we require appropriate high current connectors on EVs, for example).

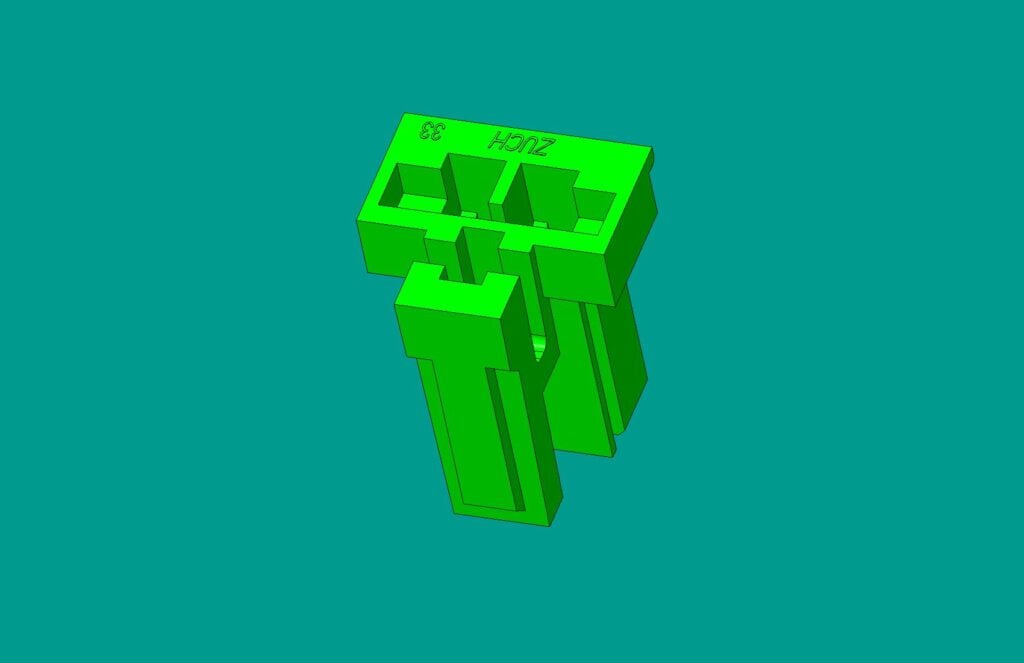

Common Types of High Current DC Connectors

There are several types of high current DC connectors currently offered commercially with specific utility applications based on their design characteristics and performance levels in industry. Examples include:

• Anderson Power Connectors: Modular connector styles used primarily due to flexibility of use, reliability, and durability. They perform most effectively at very large loads approaching 100A and above, with options available in various sizes suitable for use with products rated for 10A to 350A.
• Heavy-Duty Circular Connectors: Circular connector types are ideal for applications requiring strong, sturdy, and secure connections, such as those found in industrial machinery and robotics.
• Busbar Connectors: High current-rated connectors used in power distribution networks, battery systems, and substations, allowing for efficient connections with minimal energy loss.
• High Current PCB-Mounted Connectors: A type of connector designed for use in compact circuits where the connector can be directly integrated into a circuit board.
• Specialized EV Connectors: Connectors designed for DC electric vehicle charging systems, featuring enhanced safety features, higher current ratings, and compliance with global EV charging standards like CCS or CHAdeMO.

Applications of High Current DC Connectors in Various Industries

To understand high current connectors and their applications can illustrate how important they are to various industries. Below are five example industries:

1. Renewable Energy: Wind power, solar power, and energy storage systems require high-efficiency and durable power connections to ensure they operate consistently and without interruption.

2. Electric Vehicles: EVs and hybrid vehicles typically rely on DC high current connectors to connect battery systems to motor controllers, fast charging stations, and inverters.

3. Industrial Equipment: Reliable connectors are critical for heavy machinery, automation systems, and industrial manufacturing equipment to ensure uninterrupted power delivery to motors and control systems.

4. Aerospace and Military: The high-performance and ruggedized design of connectors in these industries provides reliable connections while withstanding severe environmental conditions without electrical or mechanical failure.

5. Data Centers: Advanced DC solutions are necessary for data centers to supply uninterrupted, efficient power to high-performance servers and networking equipment.

Best Practices for Selecting High Current DC Connectors

In today’s technology environment, selecting an appropriate DC high current connector can be a daunting task due to the many variables considered when making the decision. Below is a practical approach to choosing the correct connector:

1. Establish Your Current Rating: Understand how much current your application requires to operate. Whenever possible, select a connector with a maximum rating higher than the needed current to include a safety margin.

2. Review Material Composition and Durability: The construction materials of the connector, such as the contact metal and insulation material, directly impact long-term performance. High-conductivity materials and insulated components with excellent thermal properties are ideal for durability.

3. Confirm System Compatibility: Ensure the connector integrates seamlessly with your specific application, whether for electric vehicles, industrial machinery, or renewable energy systems.

4. Verify Environmental Resistance: Choose connectors that can withstand the environmental conditions they will encounter, such as extreme temperatures, moisture, and corrosion.

5. Look for Certifications and Standards Compliance: Opt for connectors that meet widely recognized industry standards like UL, ISO, and CE to ensure safety and reliable performance.

6. Plan for Future Scalability: Select connectors that can upgrade to higher current ratings or include additional functionalities to meet the evolving needs of your system.

Why High Current DC Connectors Are Important for the Modern Day

The changes in how we produce electricity, the electrification of transportation, and advancements in technology all emphasize the need for greater energy efficiency. Reliable high current connectors provide optimal power transmission with minimal energy loss and enhance the lifespan of electrical systems. By leveraging cutting-edge designs and modern materials, high current connectors play a critical role in shaping the future of electrical and electronics industries.

How to Choose a High-Current DC Connector

For a high-current DC connector, the right choice is determined by the complete power path: source, protection, cable, terminal, connector, load and the way heat leaves the assembly. Start with continuous and peak current, nominal and maximum voltage, cable cross-section, allowable voltage drop, duty cycle and ambient temperature. Then confirm the connector’s contact system and termination method under the same conditions.

What to Include in a High-Current Connector RFQ

1. Check that current and voltage ratings are stated with their test conditions, contact configuration and temperature assumptions.
2. Confirm the wire range, terminal material or plating, permitted termination tooling and pull-out or retention test information.
3. Read the environmental limits together with the mating condition, cable gland and mounting orientation; an enclosure rating is not automatically the rating of an incomplete assembly.
4. Ask for drawings, cavity layouts, keying, touch-protection details, applicable test reports and change-control information when the connector is part of a production system.

How do I compare two high-current DC connectors with different ampere ratings?

Compare the rating conditions first: wire size, contact count, ambient temperature, duty cycle, cooling and termination. Then compare voltage drop, temperature-rise data, locking, sealing and service requirements. The larger headline number is not enough.

Is an IP67 connector automatically suitable for continuous outdoor use?

No. Confirm what the IP test covers, then check UV exposure, cable entry, mounting orientation, mating state, temperature range and chemical exposure for the actual installation.

What should a supplier receive for a high-current DC connector quotation?

Provide voltage and current profiles, wire size and outer diameter, connector orientation, number and type of contacts, environment, IP target, mounting method, mating cycles, certifications and annual quantity. A drawing or wiring diagram reduces assumptions.

When comparing circular, busbar, PCB-mounted or EV-oriented designs, compare the same evidence fields. A connector that is convenient for a prototype may not be the best serviceable choice for a high-cycle production or outdoor installation.

Frequently Asked Questions

What types of high current DC connectors are there?

Common choices include Anderson Power Connectors, heavy-duty circular connectors, busbar connectors, PCB-mounted connectors, and specialized EV connectors. Each type is tailored to specific applications and current ratings.

Where are high current DC power connectors used?

These connectors are widely employed across industries such as renewable energy, electric vehicles, industrial machinery, aerospace, military, and data centers.

What factors should I consider when choosing a DC high current connector?

Consider key factors like current rating, material quality, environmental conditions, system compatibility, industry standards compliance, and future scalability.

Can high current DC connectors handle extreme conditions?

Yes, many high current connectors are designed to function in harsh conditions such as extreme temperatures, humidity, and vibration, which are common in industrial, aerospace, and automotive environments.

Are there customizable high current DC connector options?

Yes, many manufacturers offer custom solutions to meet specific application requirements, including unique current capacities, sizes, and mounting configurations.

Selecting the right high current DC connector is essential to have the best possible performance and energy efficiency from applications. Their high performance, high reliability, and compatibility with today’s most advanced technologies make them an integral part of any modern-day industry. As technology continues to evolve, so will the use of high current connectors play a vital role in generating new innovative energy-efficient solutions for humanity. In addition to renewable energy, electrical vehicle, and industrial industries, other industries will also be very critical to the success of high current connectors based upon their specific needs. Prioritizing high-quality, compatible, and durable high current connectors will greatly enhance both the performance of your system and the longevity of your system.

Key Points for Comparing High-Current DC Connectors

A high-current DC connector is a system component. Document the electrical profile, thermal path, environment, termination and service needs, then compare suppliers using datasheets, drawings and test conditions that describe the same configuration. This approach reduces heat, compatibility and maintenance surprises.

References and Further Reading

1. IEC 61984 — Connectors: safety requirements and tests
2. IEC 60529 — Degrees of protection provided by enclosures (IP Code)
3. IEC 60512 — Tests and measurements for connectors
4. UL Solutions — UL 1977 connector safety resources
